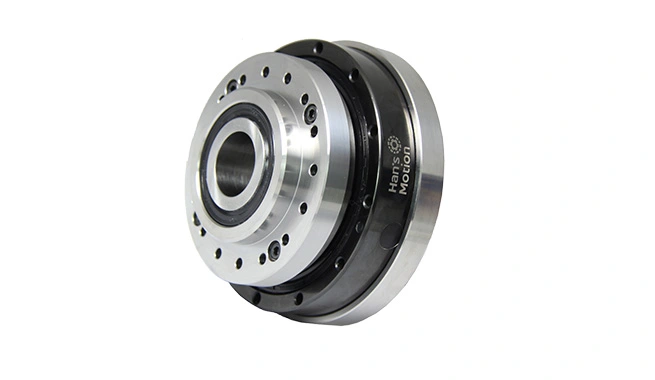

HMHG-Ⅰ Series Unit (Hollow Shaft) Harmonic Gearing

Name: HMHG-Ⅰ Series Unit (Hollow Shaft) Harmonic Gearing
Brand: Shenzhen PICEA Motion Technology Co., Ltd
Rating: 4.8 (50 reviews)

HMHG-I series flexspline belongs to the hollow flanging standard structure and there is a large-caliber hollow shaft hole in the middle of the wave generator cam. Support bearing is also designed inside the power drive gearbox. The reducer is fully sealed and easy to install, and especially suitable for the situation where there is a need to thread through the reducer center.

Features of HMHG-ⅠSeries Unit (Hollow Shaft) Strain Wave Gearing

Large diameter - Hollow structure
Compact design
Zero backlash
Input/output coaxial
Excellent positioning accuracy and rotation accuracy
30%higher torque capacity than HMHS series
43%longer lifetime than HMHS reductor harmonic drive series

Competitive quality with the above advantages of unit (hollow shaft) strain wave gearing, inquiry Hansmotion to buy harmonic drive

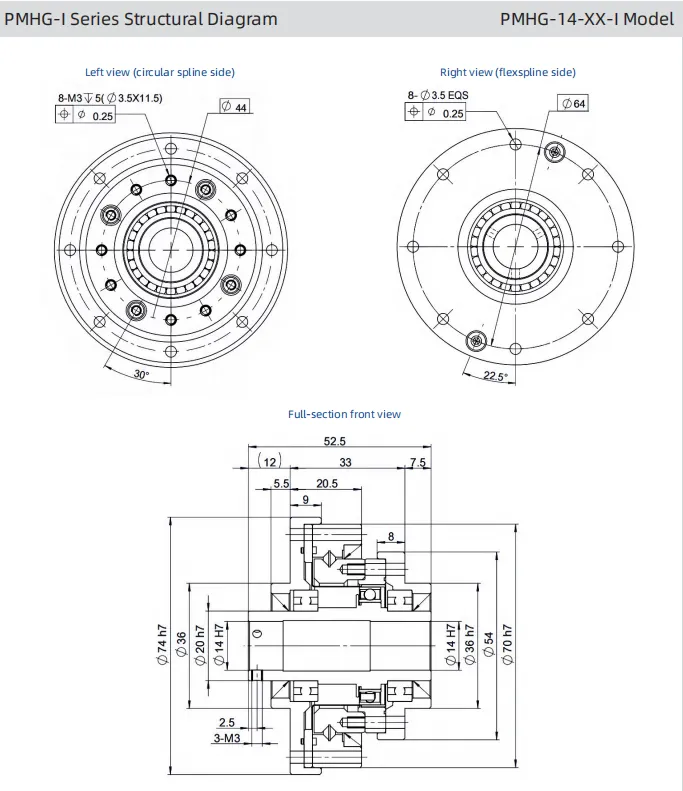

Features of HMHG-ⅠSeries Unit (Hollow Shaft) Strain Wave Gearing

Applications of HMHG-Ⅰ Series Unit (Hollow Shaft) Strain Wave Gearing

Industrial Robots (industrial robot harmonic drive)
Service Robots
Machining Center
Diagnostic Imaging

Products

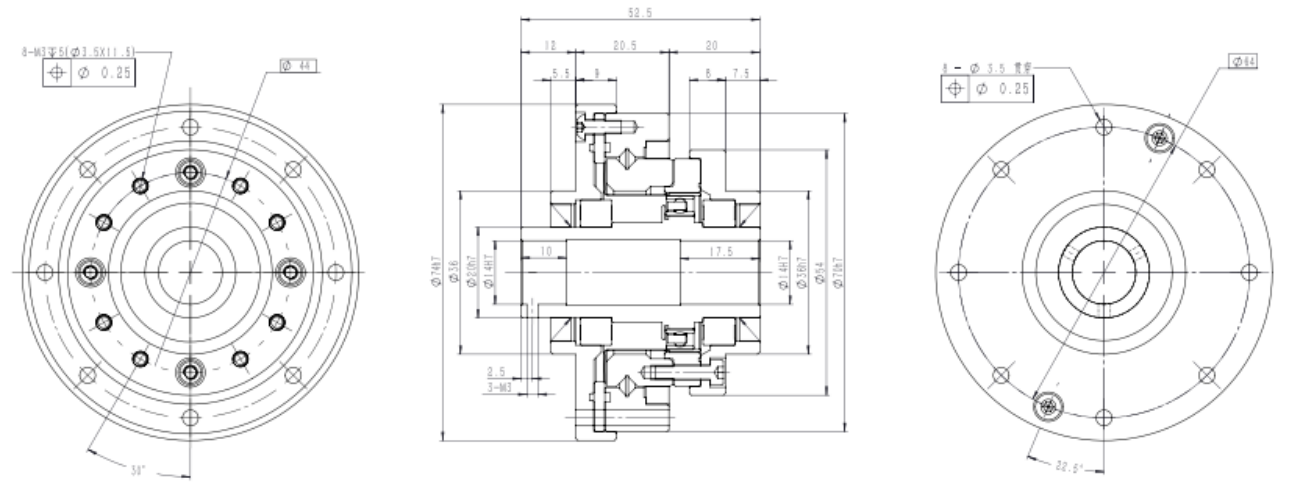

Parameters of HMHG-ⅠSeries Unit (Hollow Shaft) Harmonic Gearing

Model	Reduction ratio	Rated torque at input 2000r/min	Permissible peak torque at start/stop	Permissible max.value of ave.load torque	Instantaneous permissible max. torque	Permissible max.input rotational speed	Permissible ave. input rotational speed	Backlash (arc sec)	Transmission accuracy (arc sec)
		Nm	Nm	Nm	Nm	r/min	r/min	W	W
14	50	7	23	9	46	8000	3500	20	90
	80	10	30	14	51			20	90
	100	10	36	14	70			10	90
17	50	21	44	34	91	7000	3500	20	90
	80	29	56	35	113			20	90
	100	31	70	51	143			10	90
20	50	33	73	44	127	6000	3500	20	60
	80	44	96	61	165			20	60
	100	52	107	64	191			10	60
	120	52	113	64	161			10	60
25	50	51	127	72	242	5500	3500	20	60
	80	82	178	113	332			20	60
	100	87	204	140	369			10	60
	120	87	217	140	395			10	60
32	50	99	281	140	497	4500	3500	20	60
	80	153	395	217	738			10	60
	100	178	433	281	841			10	60
	120	178	459	281	892			10	60
40	50	178	523	255	892	4000	3000	10	60
	80	268	675	369	1270			10	60
	100	345	738	484	1400			10	60
	120	382	802	586	1530			10	60
